Domino

$8.500 $8.075

Description

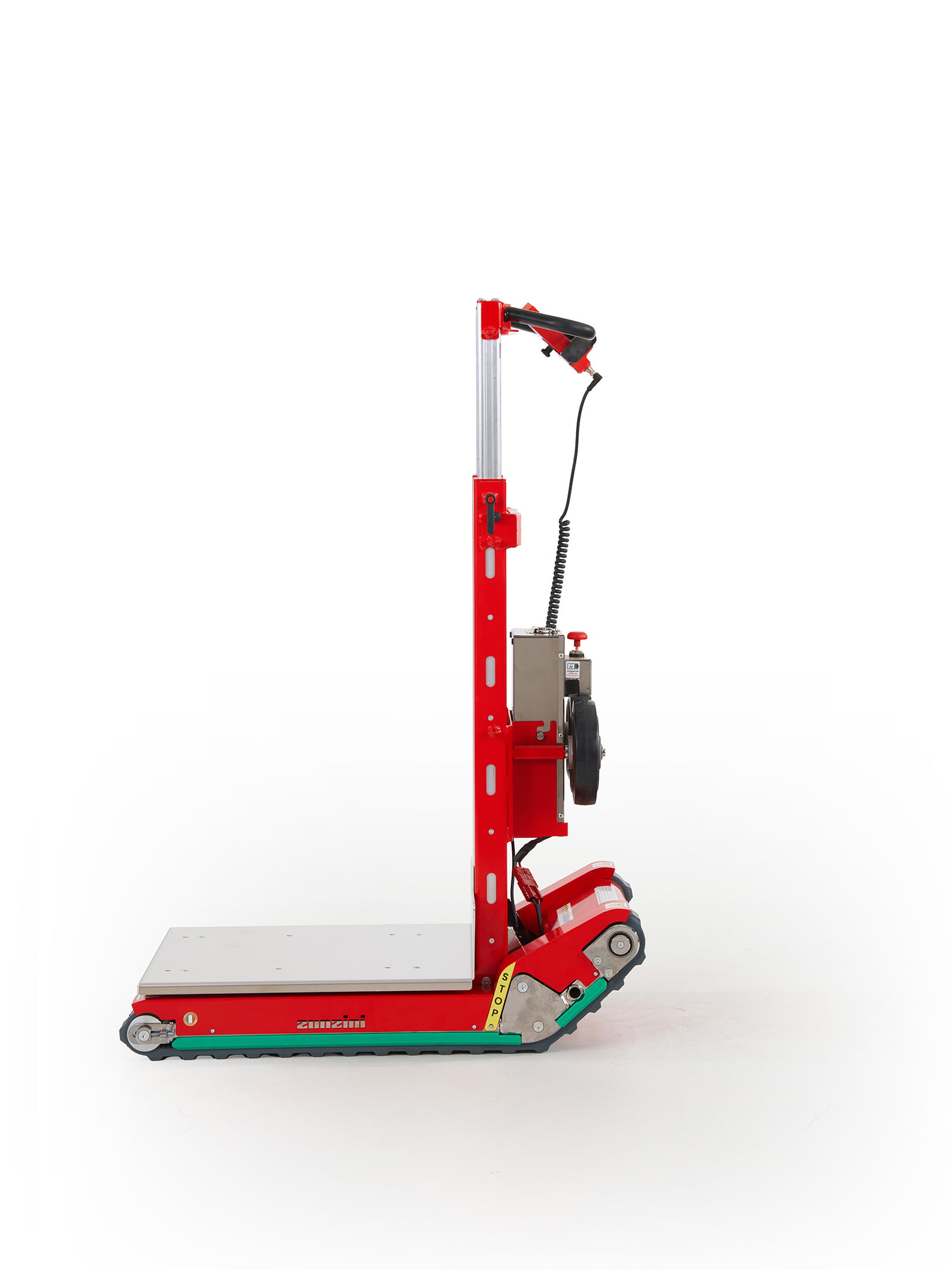

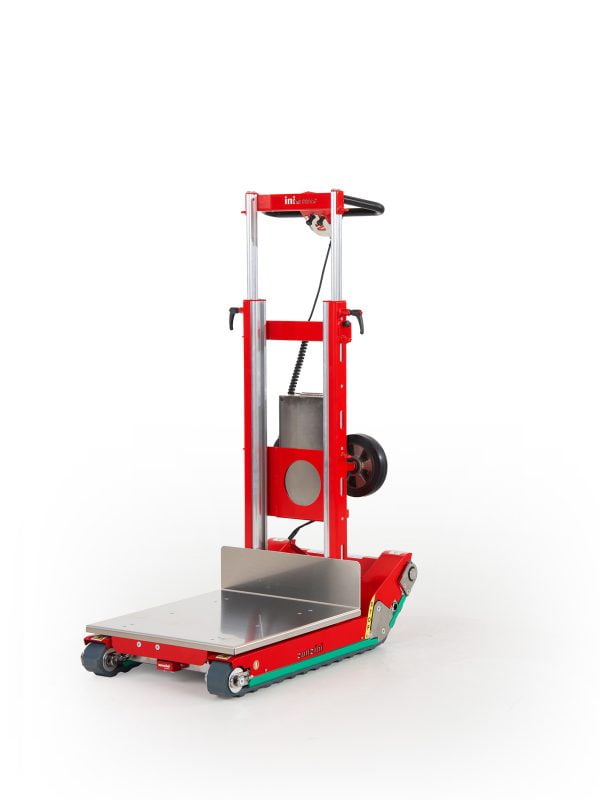

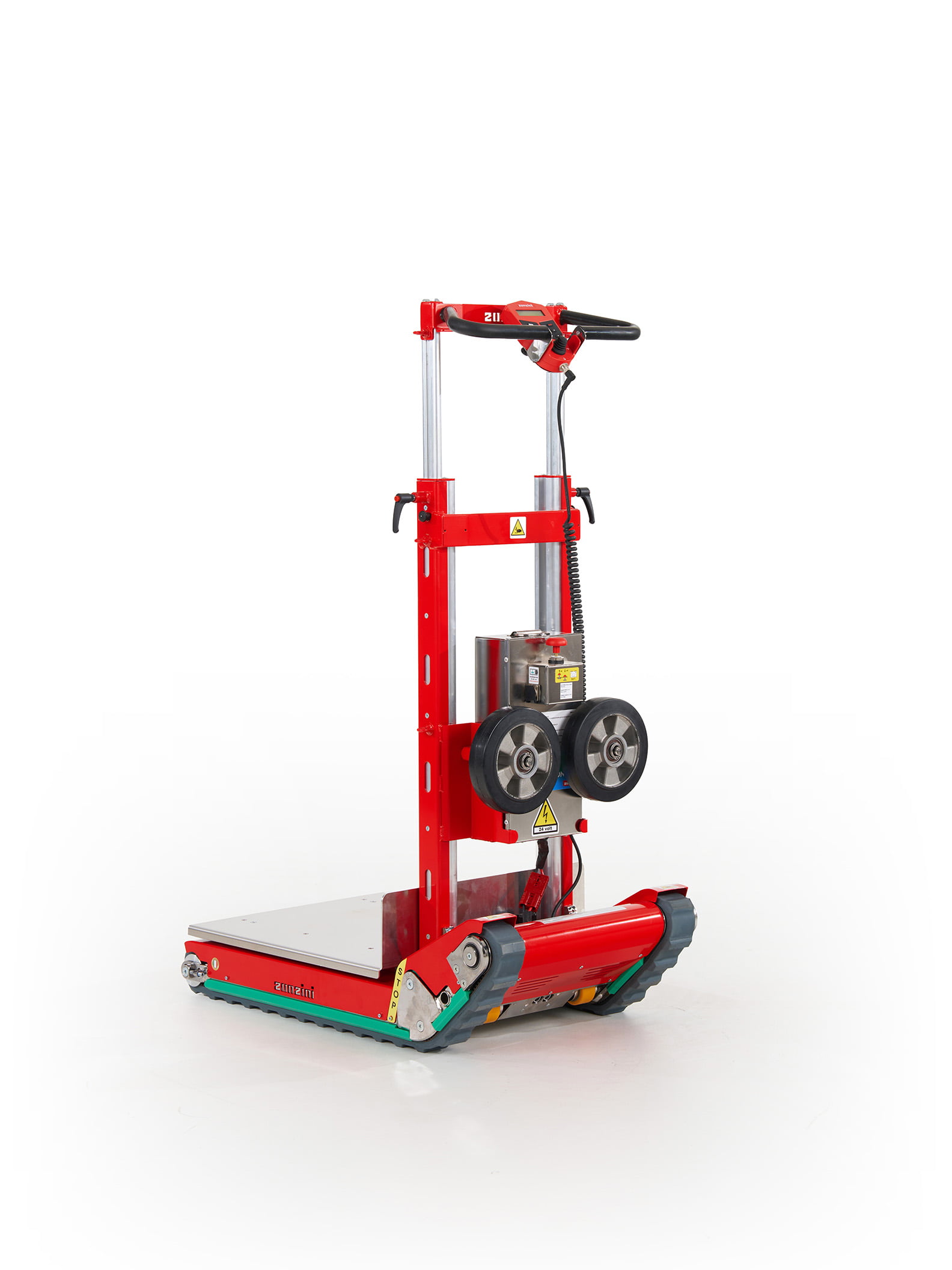

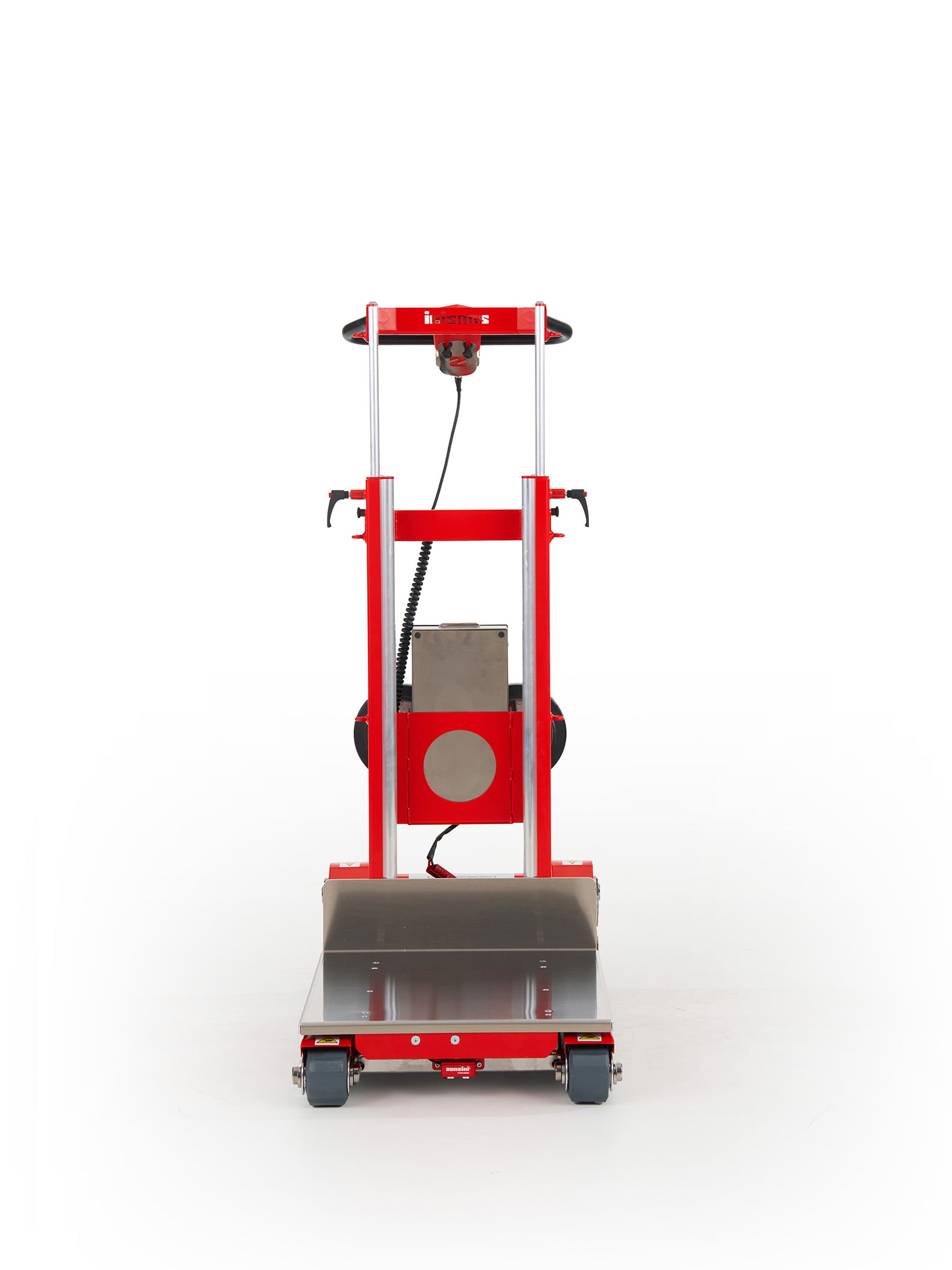

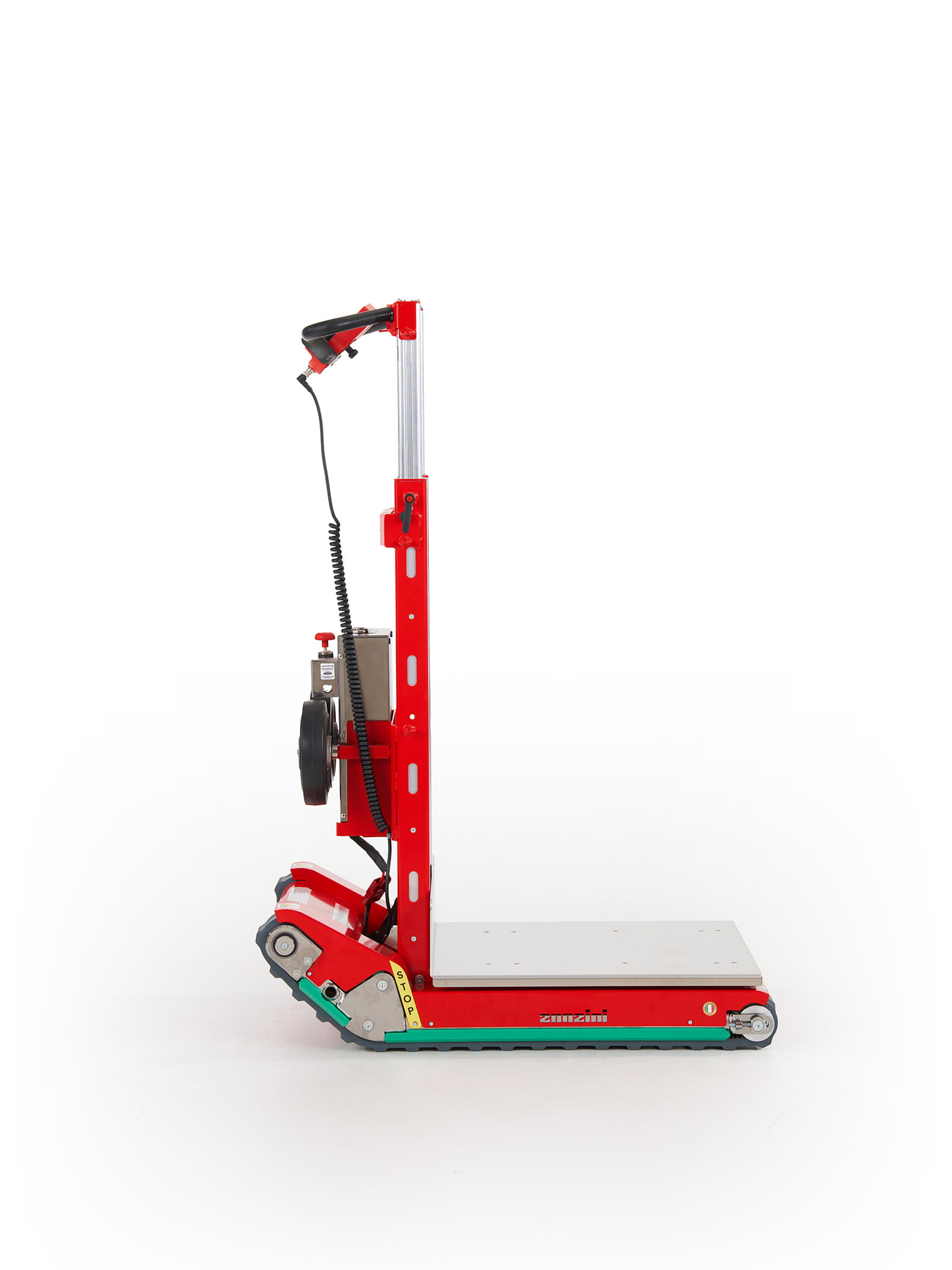

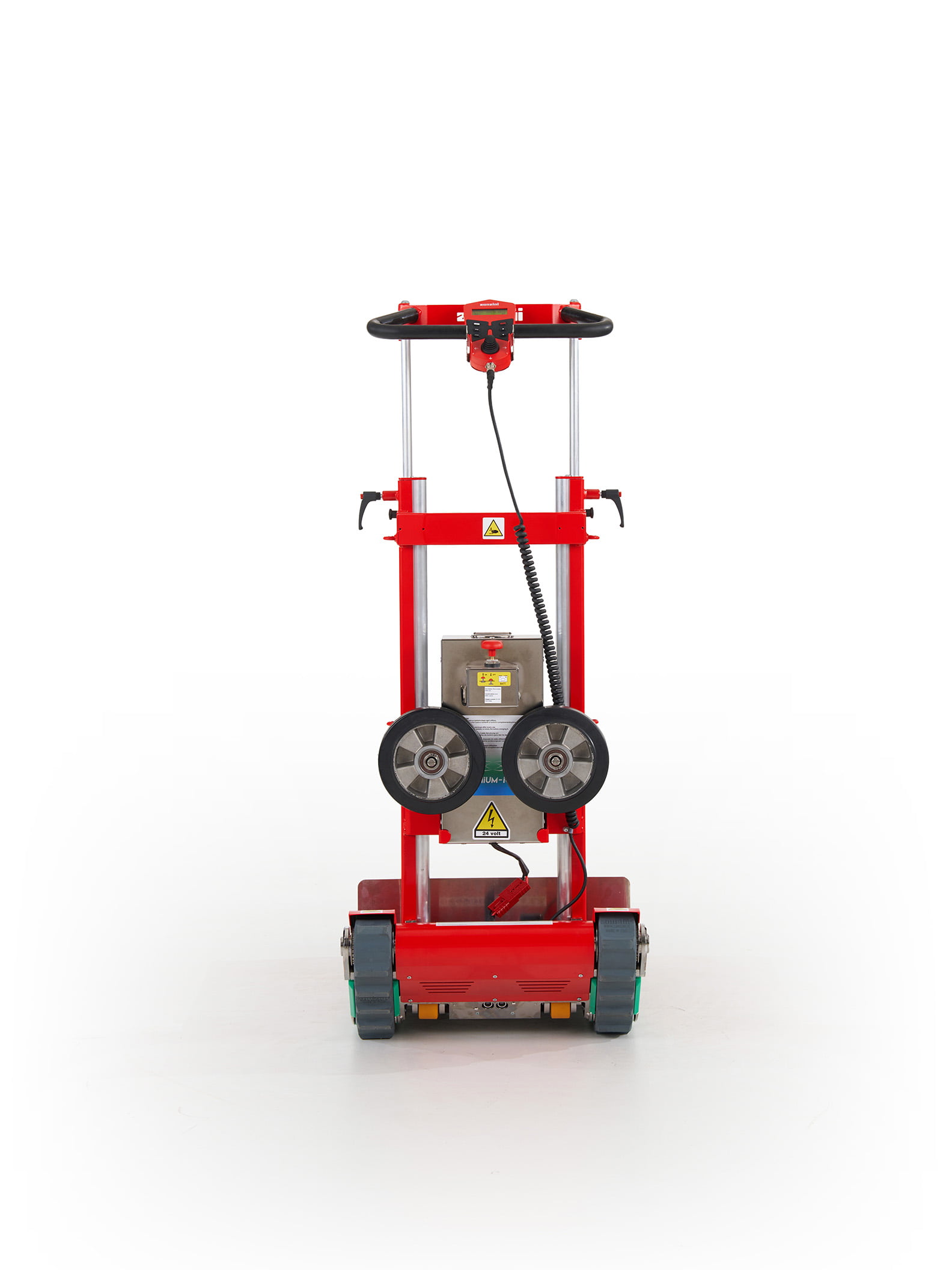

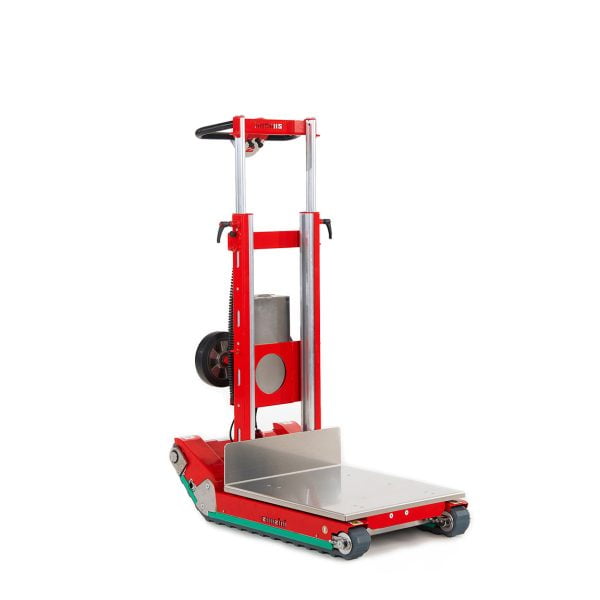

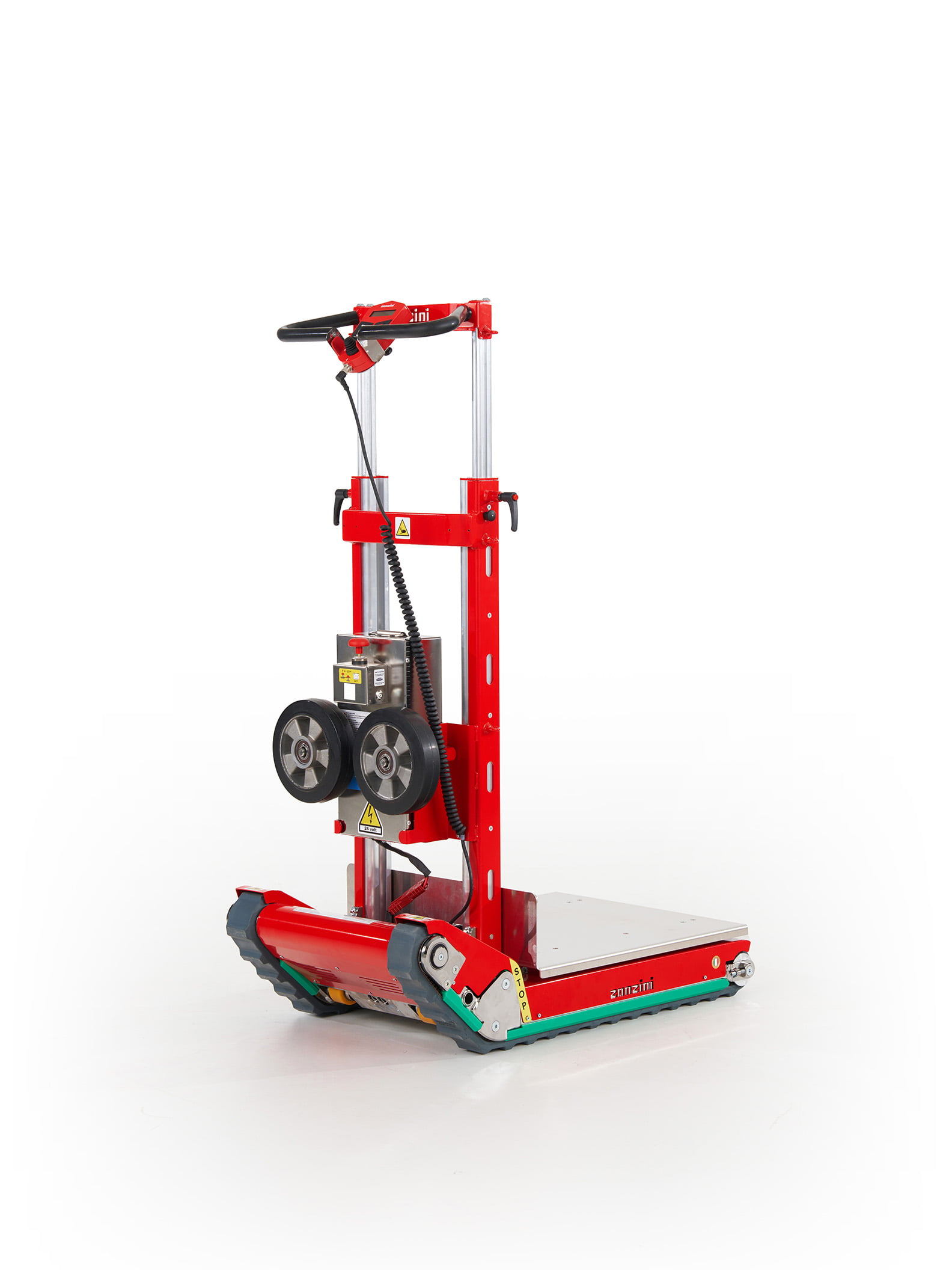

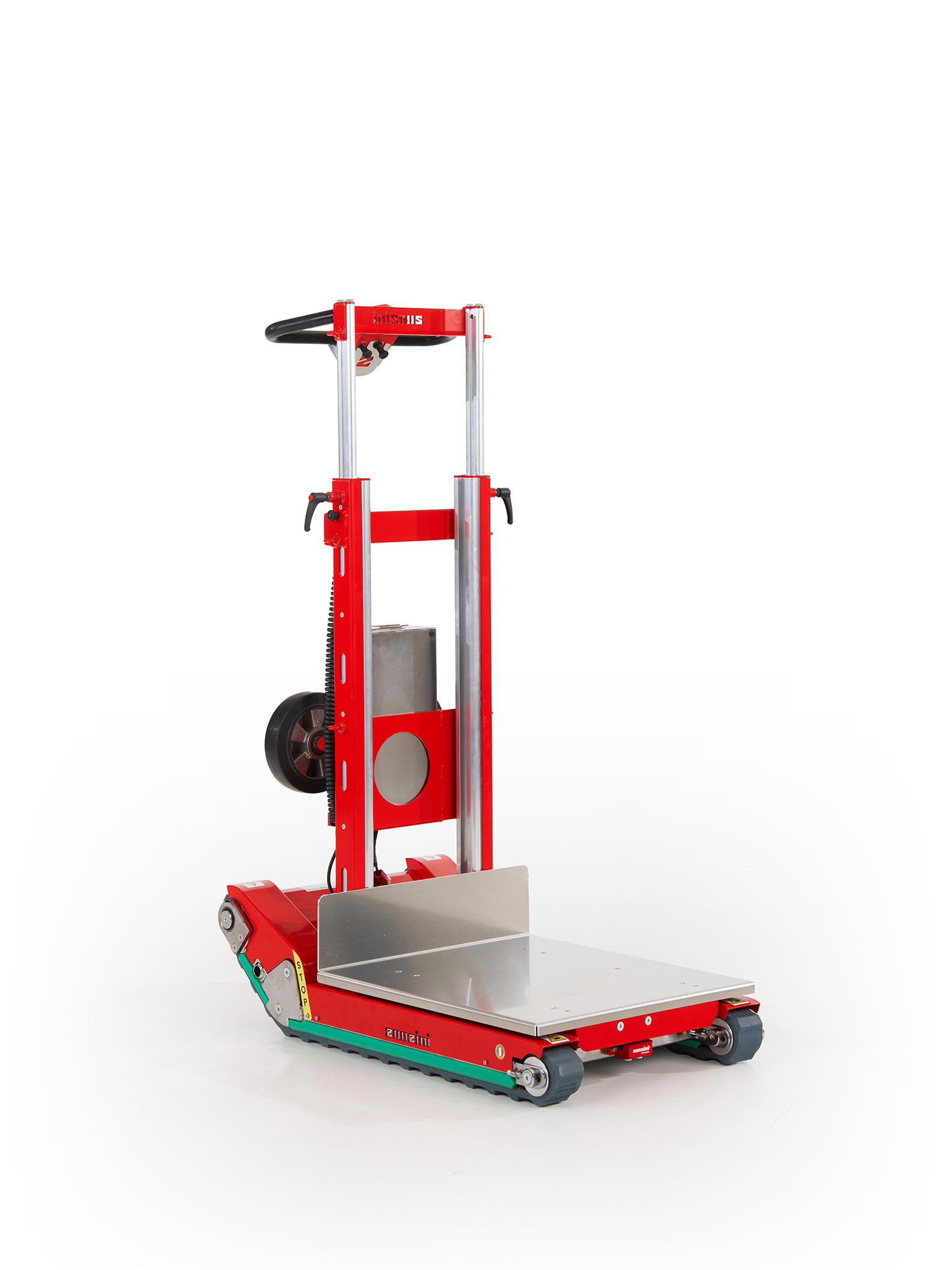

Automatic stair climbing robot for transporting loads up to 400 kg (881 lbs)

Extremely easy and safe to use, the Domino crawler-mounted powered stair climber is suitable for use on indoor and outdoor stairs and sloped floors, including unfinished floors.

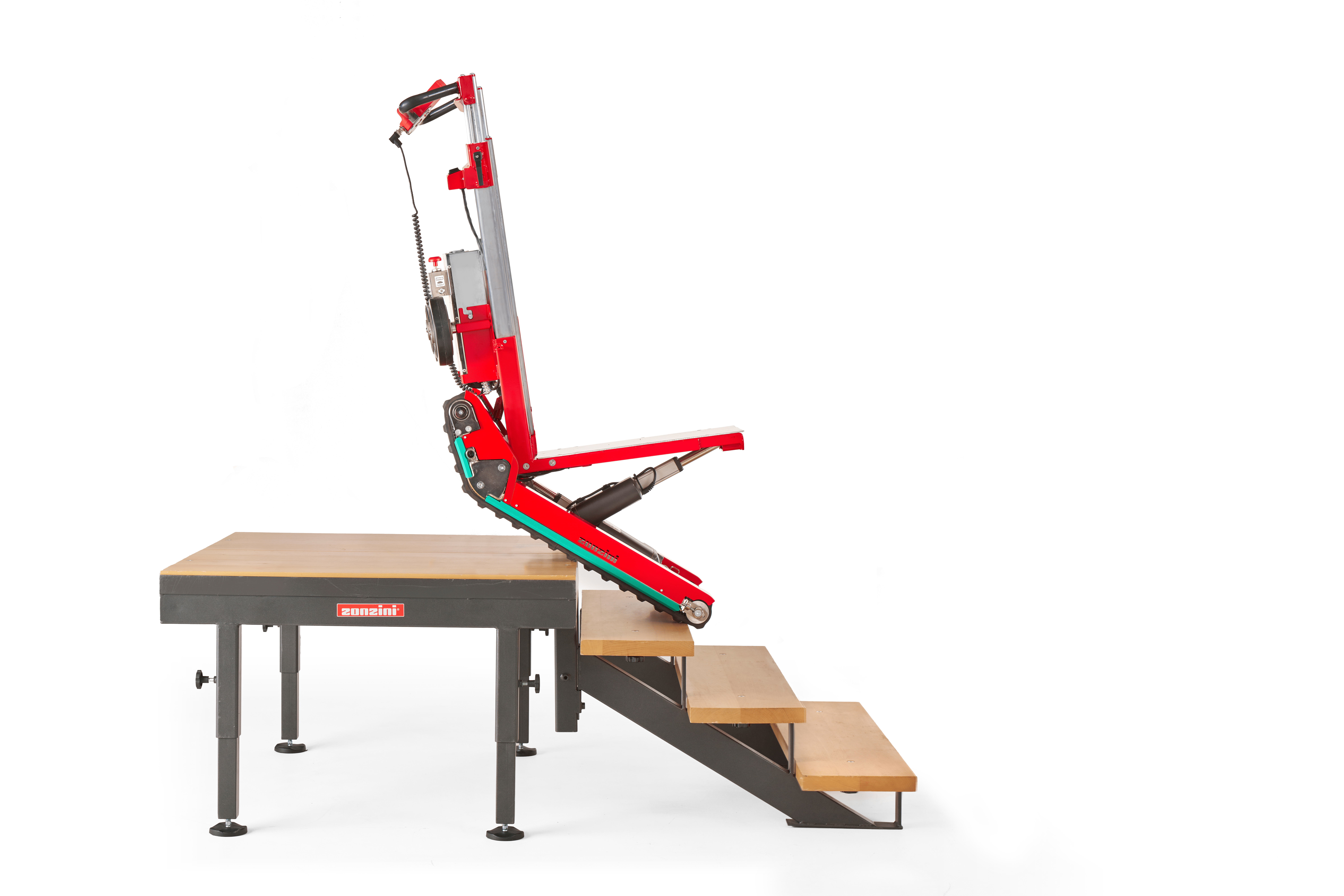

The most advanced technology available on the market is Domino Stabilized. This is the version of the stair climbing robot with a stabilizing arm. It is equipped with step detection sensors that allow the stabilizer arm to maintain contact with the ground at all times.

It is able to rotate in a very confined space.

Suitable for transporting a variety of loads up to 2 meters (6,5 ft) high.

Additional information

Maximum carrying capacity

661 lbs (300 Kg) | 881 lbs (400 Kg)

Width

21.8 " (55.6 cm)

Depth

37.6" (95.6 cm)

Minimum handle height

37.6 " (111.6 cm)

Max handle height

64.4 " (163.6 cm)

Weight without the battery

209.4 lbs (95 Kg)

Loading base width

20.8 " (53 cm)

Loading base length

24.8 " (63 cm)

Loading base height

5.3 " (13.5 cm)

Track width

2.7 " (70 mm)

Battery type and weight

Standard AGM Battery 20Ah – 24 V: 37 lbs (17 Kg) | Lithium Battery 55Ah – 24 V: 19 lbs (9 Kg)

Standard AGM battery duration

About 661 lbs (300 kg) 750 steps | About 881 lbs (400 kg) 500 steps

Lithium battery duration

About 661 lbs (300 kg) 2000 steps | About 882 lbs (400 kg) 1500 steps

Min. space on landing

42.9 " (109 cm)

Protection degree

IP54
